Inventories

An Inventory is a collection of hosts against which jobs may be launched, the same as an Ansible inventory file. Inventories are divided into groups and these groups contain the actual hosts. Groups may be sourced manually, by entering host names into AWX, or from one of its supported cloud providers.

Note

If you have a custom dynamic inventory script, or a cloud provider that is not yet supported natively in AWX, you can also import that into AWX. Refer to Inventory File Importing for detail.

The Inventories window displays a list of the inventories that are currently available. The inventory list may be sorted by name and searched type, organization, description, owners and modifiers of the inventory, or additional criteria as needed.

The list of Inventory details includes:

• Name: The inventory name. Clicking the Inventory name navigates to the properties screen for the selected inventory, which shows the inventory’s groups and hosts.

• Status: The statuses are:

  • Success: when the inventory source sync completed successfully

  • Disabled: no inventory source added to the inventory

  • Error: when the inventory source sync completed with error

• Type: Identifies whether it is a standard inventory or a constructed inventory. See Constructed Inventories for more detail.

• Organization: The organization to which the inventory belongs.

• Actions: The following actions are available for the selected inventory:

  • Edit: Edit the properties for the selected inventory

  • Copy: Makes a copy of an existing inventory as a template for creating a new one

Constructed Inventories

This feature allows creation of a constructed inventory from a list of input inventories. The constructed inventory contains copies of hosts and groups in its input inventories, allowing jobs to target groups of servers across multiple inventories. Groups and hostvars can be added to the inventory content, and hosts can be filtered to limit the size of the constructed inventory. Constructed inventories address some limitations of the Smart Inventories host filtering model and makes use of the Ansible core constructed inventory model.

Constructed inventories take source_vars and limit as inputs and transform its input_inventories into a new inventory, complete with groups. Groups (existing or constructed) can then be referenced in the limit field to reduce the number of hosts produced.

For instance, you can construct groups based on these host properties:

• RHEL major/minor versions

• Windows hosts

• Cloud based instances tagged in a certain region

• other

These examples described in the subsequent sections are organized by the structure of the input inventories.

Group name and variables filtering

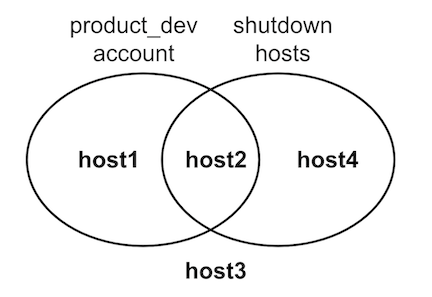

Two different conditions are demonstrated here to describe the input inventory content:

• First condition is that the state variable defined on the host is set to shutdown

• Second condition is membership in a group with account_alias variable set to product_dev

The variable account_alias is used to demonstrate a group variable. In this hypothetical, each account has its own group, with group variables giving metadata about those accounts, which is common in cloud-source inventories. These variables are shown in the general hostvars namespace in Ansible, which is why it has no special treatment in source_vars.

The hosts inside the input inventory will fit one condition, the other condition, neither, or both. This results in four hosts total for demonstration purposes.

This folder defines the inventory as an ini type named two_conditions.ini:

[account_1234]
host1
host2 state=shutdown

[account_4321]
host3
host4 state=shutdown

[account_1234:vars]
account_alias=product_dev

[account_4321:vars]
account_alias=sustaining

The goal here is to return only shutdown hosts that are present in the group with the account_alias variable of product_dev. There are two approaches to this, both shown in yaml format. The first one suggested is recommended.

1. Construct 2 groups, limit to intersection

source_vars:

plugin: constructed
strict: true
groups:
  is_shutdown: state | default("running") == "shutdown"
  product_dev: account_alias == "product_dev"

limit: is_shutdown:&product_dev

This constructed inventory input creates a group for both of the categories and uses the limit (host pattern) to only return hosts that are in the intersection of those two groups, which is documented in host patterns in Ansible.

Also, when a variable may or may not be defined (depending on the host), you can give a default, like with | default("running") if you know what value it should have when it is not defined. This helps with debugging, as described in the Debugging tips section.

2. Construct 1 group, limit to group

source_vars:

plugin: constructed
strict: true
groups:
  shutdown_in_product_dev: state | default("running") == "shutdown" and account_alias == "product_dev"

limit: shutdown_in_product_dev

This input creates one group that only includes hosts that match both criteria. The limit is then just the group name by itself, returning just host2, same as the previous approach.

Debugging tips

It is very important to set the strict parameter to True so that you can debug problems with your templates. If the template fails to render, you will get an error in the associated inventory update for that constructed inventory.

When encountering errors, increase verbosity to get more details.

Giving a default, like with | default("running") is a generic use of Jinja2 templates in Ansible. Doing this avoids errors from the particular template when you set strict: true. You could also set strict: false, and allow the template to produce an error, which results in the host not getting included in that group. However, doing so makes it difficult to debug issues in the future if your templates continue to grow in complexity.

However, you may still have to debug the intended function of the templates if they are not producing the expected inventory content. For example, if a groups group has a complex filter (like shutdown_in_product_dev) but does not contain any hosts in the resultant constructed inventory, then use the compose parameter to help debug. Like this:

source_vars:

plugin: constructed
strict: true
groups:
  shutdown_in_product_dev: state | default("running") == "shutdown" and account_alias == "product_dev"
compose:
  resolved_state: state | default("running")
  is_in_product_dev: account_alias == "product_dev"

limit: ``

Running with a blank limit will return all hosts. You can use this to inspect specific variables on specific hosts, giving insight into where problems in the groups lie.

Nested groups

The inventory contents of two groups where one is a child of the other is used here to demonstrate nested groups. The child group has a host inside of it, and the parent group has a variable defined. Due to how Ansible core works, the variable of the parent group will be available in the namespace as a playbook is running, and can be used for filtering.

Define the inventory file in a yaml format named nested.yml:

all:
  children:
    groupA:
      vars:
        filter_var: filter_val
      children:
        groupB:
          hosts:
            host1: {}
    ungrouped:
      hosts:
        host2: {}

The goal here is to filter hosts based on indirect membership in a group (because host1 is in groupB, it is also in groupA).

Filter on nested group names

Use the following YAML format to filter on nested group names:

source_vars:

plugin: constructed

limit: groupA

Filter on nested group property

This shows how you can filter on a group variable, even if the host is indirectly a member of that group.

In the inventory contents, you can see that host2 is not expected to have the variable filter_var defined, because it is not in any of the groups. Because of using strict: true, use a default value so that hosts without that variable defined. With this, host2, will return False from the expression, as opposed to producing an error. host1 will inherit the variable from its groups, and will be returned.

source_vars:

plugin: constructed
strict: true
groups:
  filter_var_is_filter_val: filter_var | default("") == "filter_val"

limit: filter_var_is_filter_val

Ansible facts

To create an inventory with Ansible facts, you need to run a playbook against the inventory that has gather_facts: true. The actual facts will differ system-to-system. The following example problems exemplify some example cases and are not intended to address all known scenarios.

Filter on environment variables

An example problem is demonstrated here that involves filtering on environment variables using the YAML format:

source_vars:

plugin: constructed
strict: true
groups:
  hosts_using_xterm: ansible_env.TERM == "xterm"

limit: hosts_using_xterm

Filter hosts by processor type

An example problem is demonstrated here that involves filtering hosts by processor type (Intel) using the yaml format:

source_vars:

plugin: constructed
strict: true
groups:
  intel_hosts: "GenuineIntel" in ansible_processor

limit: intel_hosts

Note

Like with Smart Inventories, hosts in constructed inventories are not counted against your license allotment because they are referencing the original inventory host. Also, hosts that are disabled in the original inventories will not be included in the constructed inventory.

An inventory update ran via ansible-inventory creates the constructed inventory contents. This is always configured to update-on-launch before a job, but you can still select a cache timeout value in case this takes too long.

When creating a constructed inventory, the API enforces that it always has one inventory source associated with it. All inventory updates have an associated inventory source, and the fields needed for constructed inventory (source_vars and limit) are fields already present on the inventory source model.

Smart Host Filter

You can use a search filter to populate hosts for an inventory. This feature utilized the capability of the fact searching feature.

Facts generated by an Ansible playbook during a Job Template run are stored by AWX into the database whenever use_fact_cache=True is set per-Job Template. New facts are merged with existing facts and are per-host. These stored facts can be used to filter hosts via the /api/v2/hosts endpoint, using the GET query parameter host_filter. For example: /api/v2/hosts?host_filter=ansible_facts__ansible_processor_vcpus=8

The host_filter parameter allows for:

• grouping via ()

• use of the boolean and operator:

  • __ to reference related fields in relational fields

  • __ is used on ansible_facts to separate keys in a JSON key path

  • [] is used to denote a json array in the path specification

  • "" can be used in the value when spaces are wanted in the value

• “classic” Django queries may be embedded in the host_filter

Examples:

/api/v2/hosts/?host_filter=name=localhost
/api/v2/hosts/?host_filter=ansible_facts__ansible_date_time__weekday_number="3"
/api/v2/hosts/?host_filter=ansible_facts__ansible_processor[]="GenuineIntel"
/api/v2/hosts/?host_filter=ansible_facts__ansible_lo__ipv6[]__scope="host"
/api/v2/hosts/?host_filter=ansible_facts__ansible_processor_vcpus=8
/api/v2/hosts/?host_filter=ansible_facts__ansible_env__PYTHONUNBUFFERED="true"
/api/v2/hosts/?host_filter=(name=localhost or name=database) and (groups__name=east or groups__name="west coast") and ansible_facts__an

You can search host_filter by host name, group name, and Ansible facts.

The format for a group search is:

groups.name:groupA

The format for a fact search is:

ansible_facts.ansible_fips:false

You can also perform Smart Search searches, which consist a host name and host description.

host_filter=name=my_host

If a search term in host_filter is of string type, to make the value a number (e.g. 2.66), or a JSON keyword (e.g. null, true or false) valid, add double quotations around the value to prevent AWX from mistakenly parsing it as a non-string:

host_filter=ansible_facts__packages__dnsmasq[]__version="2.66"

Define host filter with ansible_facts

To use ansible_facts to define the host filter, perform the following steps:

1. Anywhere there is a Smart host filter field, click the button next to it to open a pop-up window to filter hosts for this inventory.

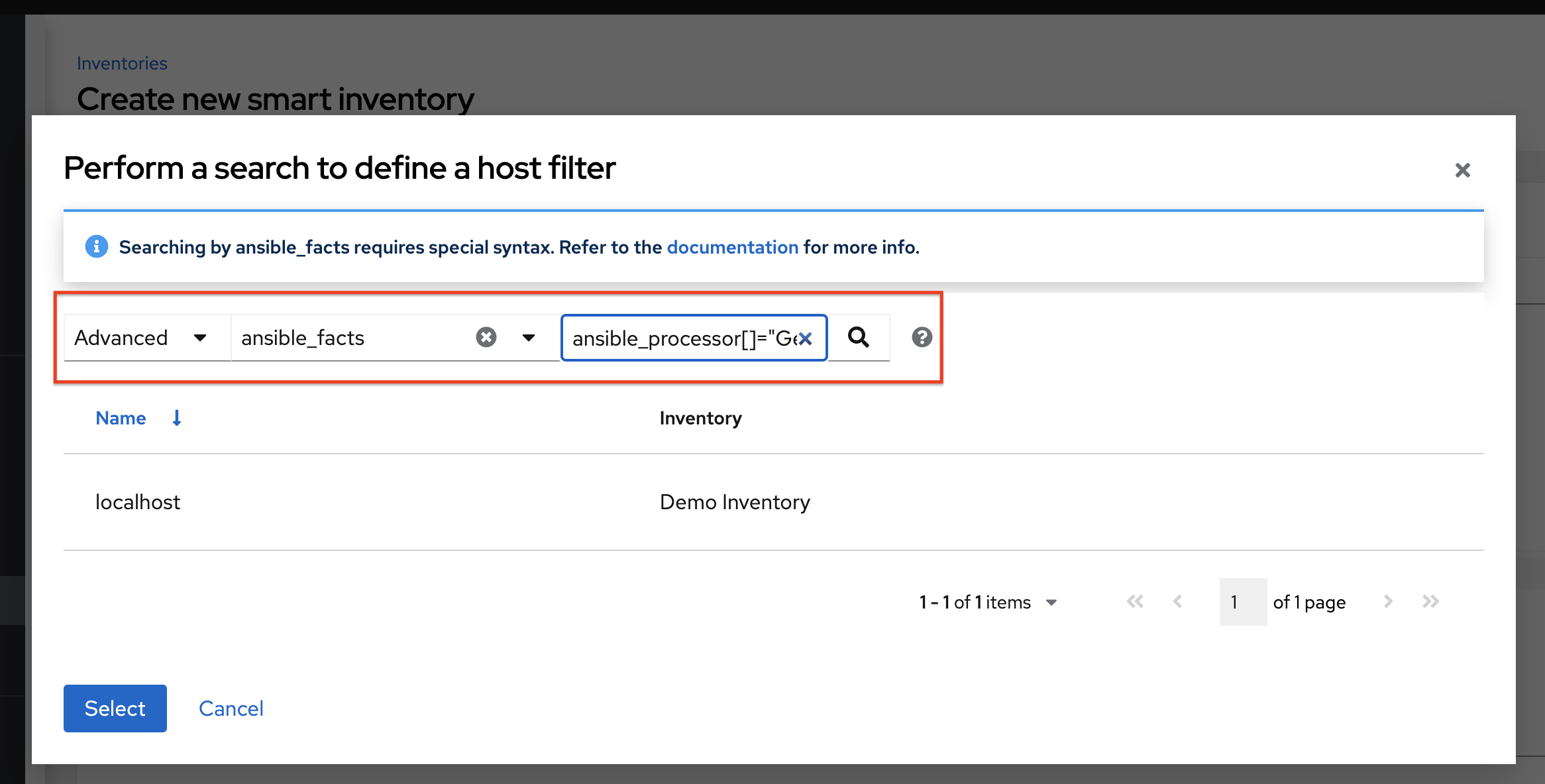

2. In the search pop-up window, change the search criteria from Name to Advanced and select ansible_facts from the Key field.

If you wanted to add an ansible fact of

/api/v2/hosts/?host_filter=ansible_facts__ansible_processor[]="GenuineIntel"

In the search field, enter ansible_processor[]="GenuineIntel" (no extra spaces or __ before the value) and press Enter.

The resulting search criteria for the specified ansible fact populates in the lower part of the window.

3. Click Select to add it to the Smart host filter field.

Add a new inventory

Adding a new inventory involves several components:

• Add permissions

• Add groups

• Add hosts

• Add source

• View completed jobs

To create a new standard inventory or constructed inventory:

1. Click the Add button, and select the type of inventory to create.

The type of inventory is identified at the top of the create form.

2. Enter the appropriate details into the following fields:

• Name: Enter a name appropriate for this inventory.

• Description: Enter an arbitrary description as appropriate (optional).

• Organization: Required. Choose among the available organizations.

• Smart Host Filter: (Only applicable to Smart Inventories) Click the button to open a separate window to filter hosts for this inventory. These options are based on the organization you chose.

  Filters are similar to tags in that tags are used to filter certain hosts that contain those names. Therefore, to populate the Smart Host Filter field, you are specifying a tag that contains the hosts you want, not actually selecting the hosts themselves. Enter the tag in the Search field and press Enter. Filters are case-sensitive. Refer to the Smart Host Filter section for more information.

• Instance Groups: Click the button to open a separate window. Choose the instance group(s) for this inventory to run on. If the list is extensive, use the search to narrow the options. You may select multiple instance groups and sort them in the order you want them ran.

• Labels: Optionally supply labels that describe this inventory, so they can be used to group and filter inventories and jobs.

• Input inventories: (Only applicable to constructed inventories) Specify the source inventories to include in this constructed inventory. Click the button to select from available inventories. Empty groups from input inventories will be copied into the constructed inventory.

• Cached timeout (seconds): (Only applicable to constructed inventories) Optionally set the length of time you want the cache plugin data to timeout.

• Verbosity: (Only applicable to constructed inventories) Control the level of output Ansible produces as the playbook executes related to inventory sources associated with constructed inventories. Choose the verbosity from Normal to various Verbose or Debug settings. This only appears in the “details” report view. Verbose logging includes the output of all commands. Debug logging is exceedingly verbose and includes information on SSH operations that can be useful in certain support instances. Most users do not need to see debug mode output.

• Limit: (Only applicable to constructed inventories) Restricts the number of returned hosts for the inventory source associated with the constructed inventory. You can paste a group name into the limit field to only include hosts in that group. See Source vars for more detail.

• Options: Check the Prevent Instance Group Fallback option (only applicable to standard inventories) to allow only the instance groups listed in the Instance Groups field above to execute the job. If unchecked, all available instances in the execution pool will be used based on the default AWX hierarchy. Click the icon for additional information.

Note

Set the prevent_instance_group_fallback option for Smart Inventories through the API.

• Variables (Source vars for constructed inventories):

  • Variables Variable definitions and values to be applied to all hosts in this inventory. Enter variables using either JSON or YAML syntax. Use the radio button to toggle between the two.

  • Source vars for constructed inventories creates groups, specifically under the groups key of the data. It accepts Jinja2 template syntax, renders it for every host, makes a True/False evaluation, and includes the host in the group (from key of the entry) if the result is True. This is particularly useful because you can paste that group name into the limit field to only include hosts in that group. See an example here.

3. Click Save when done.

After saving the new inventory, you can proceed with configuring permissions, groups, hosts, sources, and view completed jobs, if applicable to the type of inventory. For more instructions, refer to the subsequent sections.

Add permissions

1. In the Access tab, click the Add button.

2. Select a user or team to add and click Next

3. Select one or more users or teams from the list by clicking the check box(es) next to the name(s) to add them as members and click Next.

4. Select the role(s) you want the selected user(s) or team(s) to have. Be sure to scroll down for a complete list of roles. Different resources have different options available.

5. Click the Save button to apply the roles to the selected user(s) or team(s) and to add them as members.

The Add Users/Teams window closes to display the updated roles assigned for each user and team.

To remove roles for a particular user, click the disassociate (x) button next to its resource.

This launches a confirmation dialog, asking you to confirm the disassociation.

Add groups

Inventories are divided into groups, which may contain hosts and other groups, and hosts. Groups are only applicable to standard inventories and is not a configurable directly through a Smart Inventory. You can associate an existing group through host(s) that are used with standard inventories. There are several actions available for standard inventories:

• Create a new Group

• Create a new Host

• Run a command on the selected Inventory

• Edit Inventory properties

• View activity streams for Groups and Hosts

• Obtain help building your Inventory

Note

Inventory sources are not associated with groups. Spawned groups are top-level and may still have child groups, and all of these spawned groups may have hosts.

To create a new group for an inventory:

1. Click the Add button to open the Create Group window.

2. Enter the appropriate details into the required and optional fields:

• Name: Required

• Description: Enter an arbitrary description as appropriate (optional)

• Variables: Enter definitions and values to be applied to all hosts in this group. Enter variables using either JSON or YAML syntax. Use the radio button to toggle between the two.

3. When done, click Save.

Add groups within groups

To add groups within groups:

1. Click the Related Groups tab.

2. Click the Add button, and select whether to add a group that already exists in your configuration or create a new group.

3. If creating a new group, enter the appropriate details into the required and optional fields:

• Name: Required

• Description: Enter an arbitrary description as appropriate (optional)

• Variables: Enter definitions and values to be applied to all hosts in this group. Enter variables using either JSON or YAML syntax. Use the radio button to toggle between the two.

4. When done, click Save.

The Create Group window closes and the newly created group displays as an entry in the list of groups associated with the group that it was created for.

If you chose to add an existing group, available groups will appear in a separate selection window.

Once a group is selected, it displays as an entry in the list of groups associated with the group.

5. To configure additional groups and hosts under the subgroup, click on the name of the subgroup from the list of groups and repeat the same steps described in this section.

View or edit inventory groups

The list view displays all your inventory groups at once, or you can filter it to only display the root group(s). An inventory group is considered a root group if it is not a subset of another group.

You may be able to delete a subgroup without concern for dependencies, since AWX will look for dependencies such as any child groups or hosts. If any exists, a confirmation dialog displays for you to choose whether to delete the root group and all of its subgroups and hosts; or promote the subgroup(s) so they become the top-level inventory group(s), along with their host(s).

Add hosts

You can configure hosts for the inventory as well as for groups and groups within groups. To configure hosts:

1. Click the Hosts tab.

2. Click the Add button, and select whether to add a host that already exists in your configuration or create a new host.

3. If creating a new host, select the toggle button to specify whether or not to include this host while running jobs.

4. Enter the appropriate details into the required and optional fields:

• Host Name: Required

• Description: Enter an arbitrary description as appropriate (optional)

• Variables: Enter definitions and values to be applied to all hosts in this group. Enter variables using either JSON or YAML syntax. Use the radio button to toggle between the two.

5. When done, click Save.

The Create Host window closes and the newly created host displays as an entry in the list of hosts associated with the group that it was created for.

If you chose to add an existing host, available hosts will appear in a separate selection window.

Once a host is selected, it displays as an entry in the list of hosts associated with the group. You can disassociate a host from this screen by selecting the host and click the Disassociate button.

Note

You may also run ad hoc commands from this screen. Refer to Running Ad Hoc Commands for more detail.

6. To configure additional groups for the host, click on the name of the host from the list of hosts.

This opens the Details tab of the selected host.

7. Click the Groups tab to configure groups for the host.

1. Click the Add button to associate the host with an existing group.

Available groups appear in a separate selection window.

2. Click to select the group(s) to associate with the host and click Save.

Once a group is associated, it displays as an entry in the list of groups associated with the host.

8. If a host was used to run a job, you can view details about those jobs in the Completed Jobs tab of the host and click Expanded to view details about each job.

Note

You may create hosts in bulk using the newly added endpoint in the API, /api/v2/bulk/host_create. This endpoint accepts JSON and you can specify the target inventory and a list of hosts to add to the inventory. These hosts must be unique within the inventory. Either all hosts are added, or an error is returned indicating why the operation was not able to complete. Use the OPTIONS request to return relevant schema. For more information, see the Bulk endpoint.

Add source

Inventory sources are not associated with groups. Spawned groups are top-level and may still have child groups, and all of these spawned groups may have hosts. Adding a source to an inventory only applies to standard inventories. Smart inventories inherit their source from the standard inventories they are associated with. To configure the source for the inventory:

1. In the inventory you want to add a source, click the Sources tab.

2. Click the Add button.

This opens the Create Source window.

3. Enter the appropriate details into the required and optional fields:

• Name: Required

• Description: Enter an arbitrary description as appropriate (optional)

• Execution Environment: Optionally search () or enter the name of the execution environment with which you want to run your inventory imports, if applicable

• Source: Choose a source for your inventory. Refer to the Inventory Plugins section for more information about each source and details for entering the appropriate information.

4. After completing the required information for your chosen inventory source, you can continue to optionally specify other common parameters, such as verbosity, host filters, and variables.

5. Select the appropriate level of output on any inventory source’s update jobs from the Verbosity drop-down menu.

6. Use the Host Filter field to specify only matching host names to be imported into AWX.

7. In the Enabled Variable, specify AWX to retrieve the enabled state from the given dictionary of host variables. The enabled variable may be specified using dot notation as ‘foo.bar’, in which case the lookup will traverse into nested dictionaries, equivalent to: from_dict.get('foo', {}).get('bar', default).

8. If you specified a dictionary of host variables in the Enabled Variable field, you can provide a value to enable on import. For example, if enabled_var='status.power_state' and enabled_value='powered_on' with the following host variables, the host would be marked enabled:

{
"status": {
"power_state": "powered_on",
"created": "2020-08-04T18:13:04+00:00",
"healthy": true
},
"name": "foobar",
"ip_address": "192.168.2.1"
}

If power_state were any value other than powered_on, then the host would be disabled when imported into AWX. If the key is not found, then the host will be enabled.

9. All cloud inventory sources have the following update options:

• Overwrite: If checked, any hosts and groups that were previously present on the external source but are now removed, will be removed from AWX inventory. Hosts and groups that were not managed by the inventory source will be promoted to the next manually created group, or if there is no manually created group to promote them into, they will be left in the “all” default group for the inventory.

When not checked, local child hosts and groups not found on the external source will remain untouched by the inventory update process.

• Overwrite Variables: If checked, all variables for child groups and hosts will be removed and replaced by those found on the external source. When not checked, a merge will be performed, combining local variables with those found on the external source.

• Update on Launch: Each time a job runs using this inventory, refresh the inventory from the selected source before executing job tasks. To avoid job overflows if jobs are spawned faster than the inventory can sync, selecting this allows you to configure a Cache Timeout to cache prior inventory syncs for a certain number of seconds.

The “Update on Launch” setting refers to a dependency system for projects and inventory, and it will not specifically exclude two jobs from running at the same time. If a cache timeout is specified, then the dependencies for the second job is created and it uses the project and inventory update that the first job spawned. Both jobs then wait for that project and/or inventory update to finish before proceeding. If they are different job templates, they can then both start and run at the same time, if the system has the capacity to do so. If you intend to use AWX’s provisioning callback feature with a dynamic inventory source, Update on Launch** should be set for the inventory group.

If you sync an inventory source that uses a project that has Update On Launch set, then the project may automatically update (according to cache timeout rules) before the inventory update starts.

You can create a job template that uses an inventory that sources from the same project that the template uses. In this case, the project will update and then the inventory will update (if updates are not already in-progress, or if the cache timeout has not already expired).

10. Review your entries and selections and click Save when done. This allows you to configure additional details, such as schedules and notifications.

11. To configure schedules associated with this inventory source, click the Schedules tab.

1. If schedules are already set up; review, edit, or enable/disable your schedule preferences.

2. if schedules have not been set up, set them up following the prompts.

12. To configure notifications for the source, click the Notifications tab.

1. If notifications are already set up, use the toggles to enable or disable the notifications to use with your particular source.

2. If notifications have not been set up, set them up following the prompts.

13. Review your entries and selections and click Save when done.

Once a source is defined, it displays as an entry in the list of sources associated with the inventory. From the Sources tab you can perform a sync on a single source, or sync all of them at once. You can also perform additional actions such as scheduling a sync process, and edit or delete the source.

Inventory Sources

To configure inventory sources, refer to Inventory Plugins.

Export old inventory scripts

Despite the removal of the custom inventory scripts API, the scripts are still saved in the database. The commands described in this section allows you to recover the scripts in a format that is suitable for you to subsequently check into source control. Usage looks like this:

$ awx-manage export_custom_scripts --filename=my_scripts.tar
Dump of old custom inventory scripts at my_scripts.tar

Making use of the output:

$ mkdir my_scripts
$ tar -xf my_scripts.tar -C my_scripts

The naming of the scripts is _<pk>__<name>. This is the naming scheme used for project folders.

$ ls my_scripts
_10__inventory_script_rawhook             _19__                                       _30__inventory_script_listenhospital
_11__inventory_script_upperorder          _1__inventory_script_commercialinternet45   _4__inventory_script_whitestring
_12__inventory_script_eastplant           _22__inventory_script_pinexchange           _5__inventory_script_literaturepossession
_13__inventory_script_governmentculture   _23__inventory_script_brainluck             _6__inventory_script_opportunitytelephone
_14__inventory_script_bottomguess         _25__inventory_script_buyerleague           _7__inventory_script_letjury
_15__inventory_script_wallisland          _26__inventory_script_lifesport             _8__random_inventory_script_
_16__inventory_script_wallisland          _27__inventory_script_exchangesomewhere     _9__random_inventory_script_
_17__inventory_script_bidstory            _28__inventory_script_boxchild
_18__p                                    _29__inventory_script_wearstress

Each file contains a script. Scripts can be bash/python/ruby/more, so the extension is not included. They are all directly executable (assuming the scripts worked). If you execute the script, it dumps the inventory data.

$ ./my_scripts/_11__inventory_script_upperorder
{"group_\ud801\udcb0\uc20e\u7b0e\ud81c\udfeb\ub12b\ub4d0\u9ac6\ud81e\udf07\u6ff9\uc17b": {"hosts":
["host_\ud821\udcad\u68b6\u7a51\u93b4\u69cf\uc3c2\ud81f\uddbe\ud820\udc92\u3143\u62c7",
"host_\u6057\u3985\u1f60\ufefb\u1b22\ubd2d\ua90c\ud81a\udc69\u1344\u9d15",
"host_\u78a0\ud820\udef3\u925e\u69da\ua549\ud80c\ude7e\ud81e\udc91\ud808\uddd1\u57d6\ud801\ude57",
"host_\ud83a\udc2d\ud7f7\ua18a\u779a\ud800\udf8b\u7903\ud820\udead\u4154\ud808\ude15\u9711",
"host_\u18a1\u9d6f\u08ac\u74c2\u54e2\u740e\u5f02\ud81d\uddee\ufbd6\u4506"], "vars": {"ansible_host": "127.0.0.1", "ansible_connection":
"local"}}}

You can verify functionality with ansible-inventory. This should give the same data, but reformatted.

$ ansible-inventory -i ./my_scripts/_11__inventory_script_upperorder --list --export

In the above example, you could cd into my_scripts and then issue a git init command, add the scripts you want, push it to source control, and then create an SCM inventory source in the AWX user interface.

For more information on syncing or using custom inventory scripts, refer to Inventory File Importing for detail.

View completed jobs

If an inventory was used to run a job, you can view details about those jobs in the Completed Jobs tab of the inventory and click Expanded to view details about each job.

Running Ad Hoc Commands

To run an ad hoc command:

1. Select an inventory source from the list of hosts or groups. The inventory source can be a single group or host, a selection of multiple hosts, or a selection of multiple groups.

2. Click the Run Command button.

The Run command window opens.

3. Enter the details for the following fields:

• Module: Select one of the modules that AWX supports running commands against.

  command	apt_repository	mount	win_service
  shell	apt_rpm	ping	win_updates
  yum	service	selinux	win_group
  apt	group	setup	win_user
  apt_key	user	win_ping

• Arguments: Provide arguments to be used with the module you selected.

• Limit: Enter the limit used to target hosts in the inventory. To target all hosts in the inventory enter all or *, or leave the field blank. This is automatically populated with whatever was selected in the previous view prior to clicking the launch button.

• Machine Credential: Select the credential to use when accessing the remote hosts to run the command. Choose the credential containing the username and SSH key or password that Ansible needs to log into the remote hosts.

• Verbosity: Select a verbosity level for the standard output.

• Forks: If needed, select the number of parallel or simultaneous processes to use while executing the command.

• Show Changes: Select to enable the display of Ansible changes in the standard output. The default is OFF.

• Enable Privilege Escalation: If enabled, the playbook is run with administrator privileges. This is the equivalent of passing the --become option to the ansible command.

• Extra Variables: Provide extra command line variables to be applied when running this inventory. Enter variables using either JSON or YAML syntax. Use the radio button to toggle between the two.

4. Click Next to choose the execution environment you want the ad-hoc command to be run against.

5. Click Next to choose the credential you want to use and click the Launch button.

The results display in the Output tab of the module’s job window.
